Simonswerk Tectus TE440 3D toon (SW124) F1

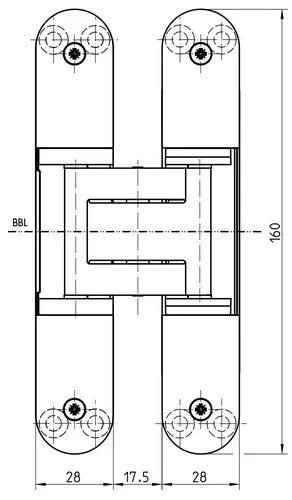

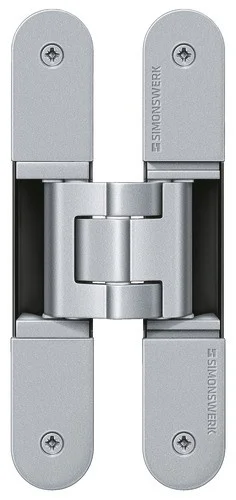

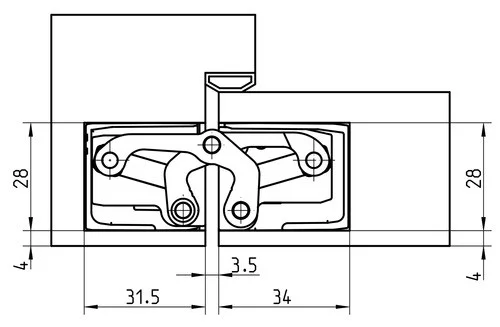

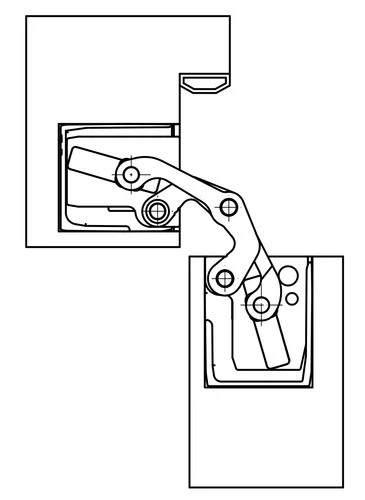

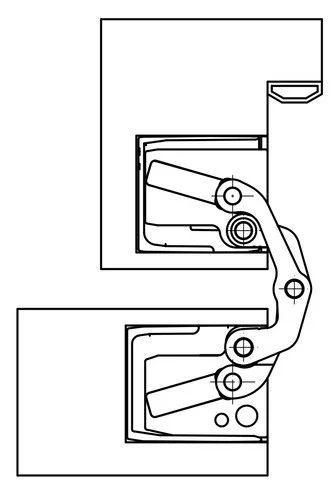

SIMONSWERK TECTUS TE 440 3D fully concealed hinge for flush doors. Suitable for wood, steel and aluminium frames. Load capacity up to 100 kg, opening angle up to 180°, with maintenance-free slide bearings and adjustable in three planes: sideways ±3.0 mm, height ±3.0 mm and pressure depth ±1.0 mm. Can be used for both right-hand and left-hand opening doors.
